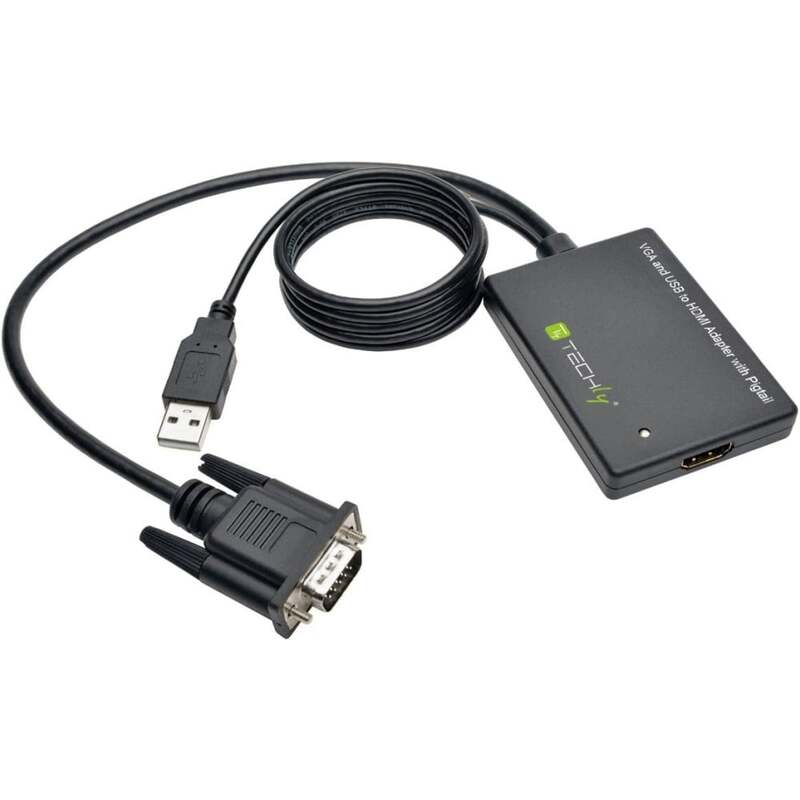

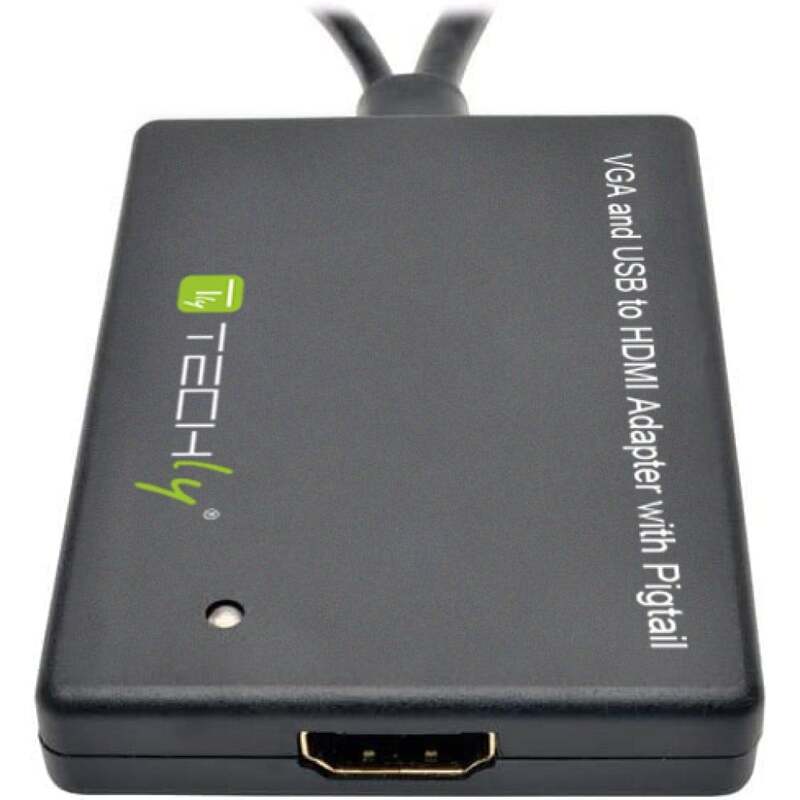

TECHLY – VGA to HDMI Converter Cable w/ Audio

Description

Characteristics

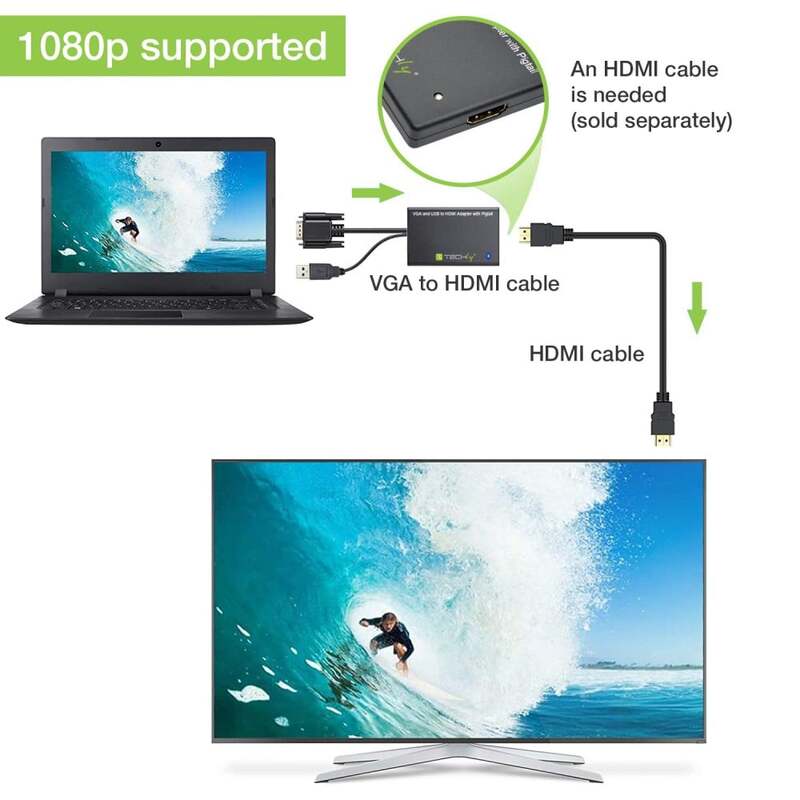

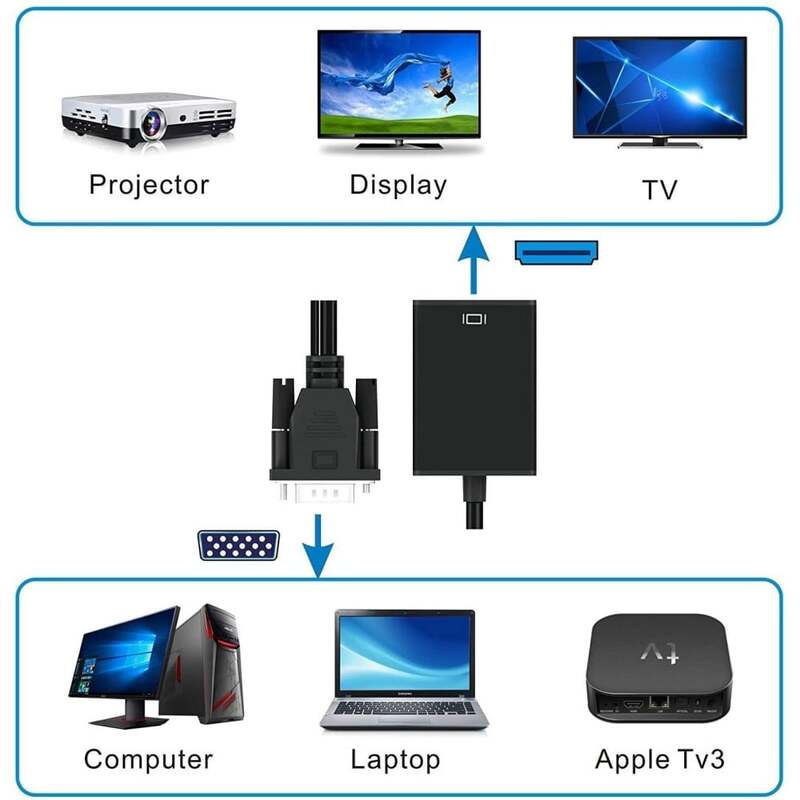

• Convert PC's VGA video and USB 2CH audio to an HDMI signal, complete
• Can be installed in seconds without the need for setting up
• It supports the most popular resolutions, VGA video
• Supports 165 MHz /1.65 Gbps per channel (6.75 Gbps all channels) bandwidth
• Supports colour depth of 8 bits per channel (24-bit all channels)
• USB powered

Specification

• Input Video Signal: 0.5-1.0 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Video Output: HDMI
• Joint Resolution VGA:- 640×480 60Hz 75Hz

– 800×600 60Hz 75Hz
– 1024×768 60Hz 75Hz
– 1280×720 60Hz 75Hz
– 1280×768 60Hz 75Hz
– 1280×960 60Hz 75Hz
– 60Hz 1280×1024 75Hz

• Vertical Frequency Range: 50 / 60Hz
• Video Amplifier Bandwidth: 1.65 Gbps / 165 MHz

Physical Information

• Size (L-A-L) 80 mm x 12 mm x 55 mm

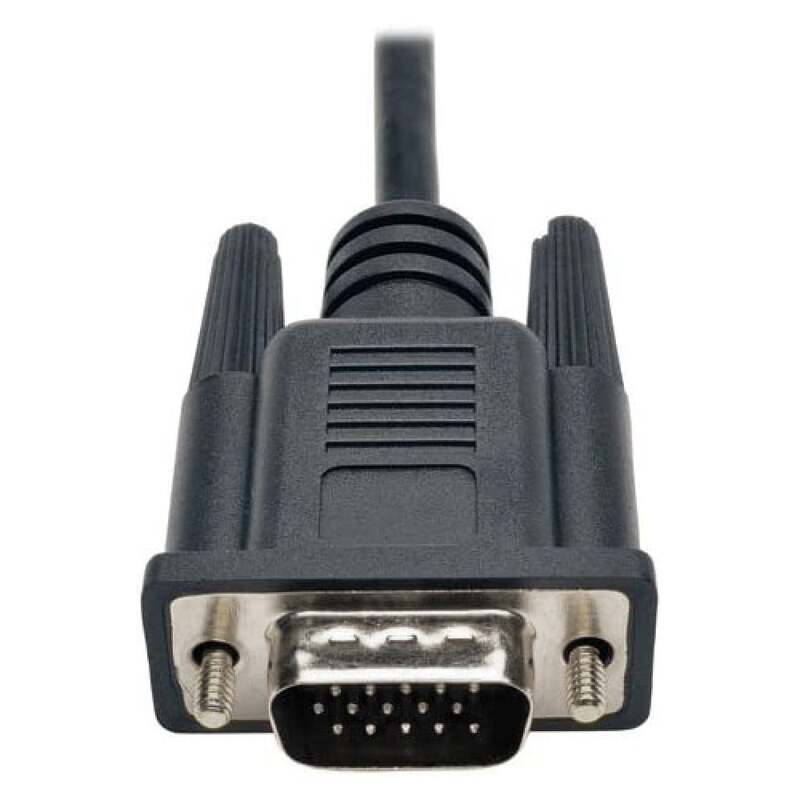

• VGA Cable length: 0.3 m

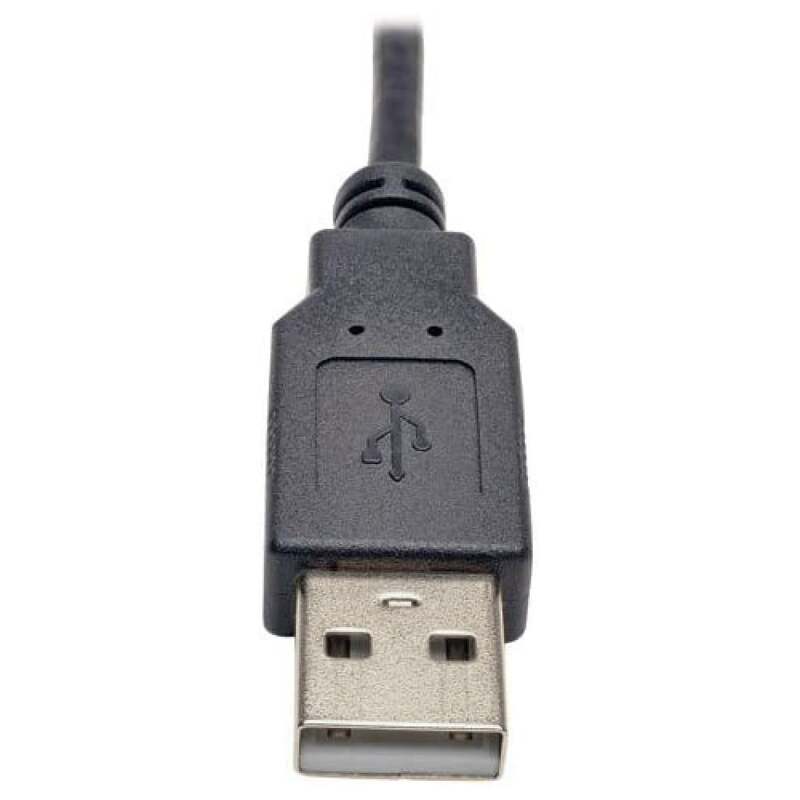

• USB cable length: 1 m
• Weight (approx): 0.113 kg

General Information

• Operating temperature: 0 ° C to + 70 ° C
• Operating Humidity: 10% to 85% RH (non-condensing)
• Storage temperature: -10 ° C to + 80 ° C
• Storage humidity: 5% to 95% RH (non-condensing)

Package Contents

• SVGA cable converter and Audio to HDMI
• User manual
